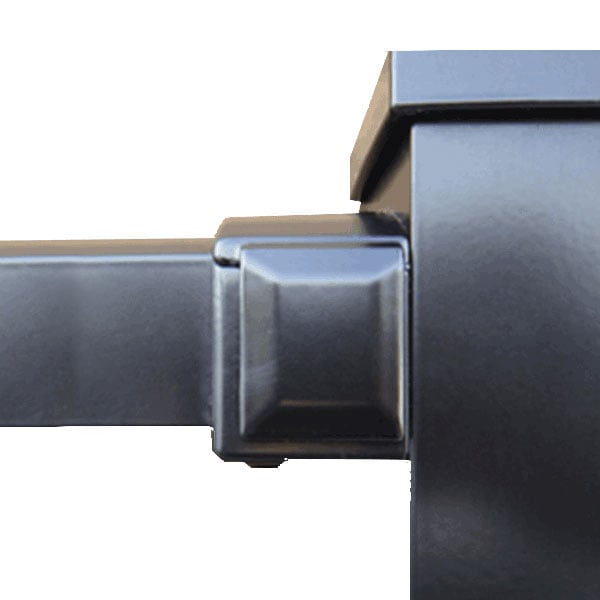

Riviera Rail Wall Mount Bracket

More Views

Brackets For Westbury Riviera Rail

Riviera Railing Brackets

Westbury Riviera Railing Brackets are used to attach rail sections to posts or walls. Available in three Westbury colors and sold in packs of 6 for Riviera rails. Double Swivel Mount Brackets which are sold in packs of 3.

These brackets are used with all Riviera line products.

Available Brackets

  • Wall Mount Brackets - Same as level kit hardware.
  • Angle Mount Brackets - Swivels left and right.
  • Stair Mount Brackets - Same as stair rail kit hardware.
  • Stair Swivel Mounts - Swivels up and down.
  • Double Swivel Stair Mounts - 2 pack compound swivel, including screws.

Available Finishes

  • Black Fine Texture
  • Bronze Fine Texture
  • Special Order Finishes Non Returnable Under Any Conditions: White Fine Texture, Brown Fine Texture, Satin Black, Ninety Bronze, Gloss Beige, Gloss White, Clay, Speckled Walnut, Sandy Shore, Chocolate, Silver.
  • Order Color Samples for Westbury Railing.

View more product details
$55.99

* Required Fields

$55.99

Questions? Visit our resource center or ask an expert

Free Ground Shipping Available

On any combination of select items over $199

Excluding Alaska and Hawaii. Conditions Apply

  • Minimum Order Tier: $199
  • Note: Free shipping only applies to combined product totals of the same Minimum Order Tier. Learn More

Ground Shipping Only

This product requires ground shipping.

This Rail System Complies with IBC, IRC, and FBC Rules and is Listed on CCRR-0163. This Rail System is Approved for use in Hurricane Zones, Miami-Dade County Approved

Westbury Riviera Railing Brackets are available in three finishes, Black Fine Texture (Matte Black), Bronze Fine Texture, and White Fine Texture in addition to special order colors. Westbury Brackets are powder coated with state of the art technology to resist outdoor fading and all hardware is zinc die cast for corrosion resistance.


Level Angle 0-45 Degrees
Fixed Stair Angle 32-36 Degrees
Stair Swivel Angle 0-43 Degrees


More Details on uses for Riviera Brackets

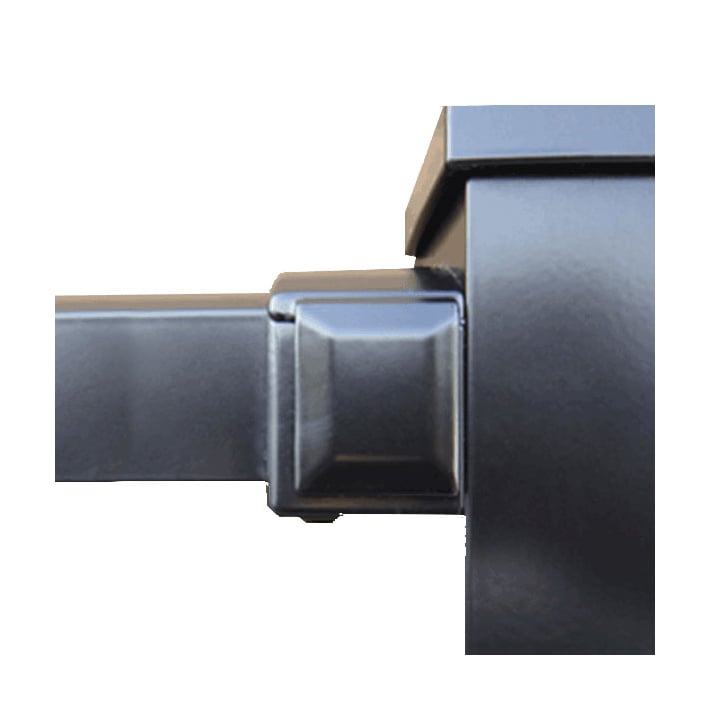

  • Wall Mount Brackets:For Level or Line Railings.

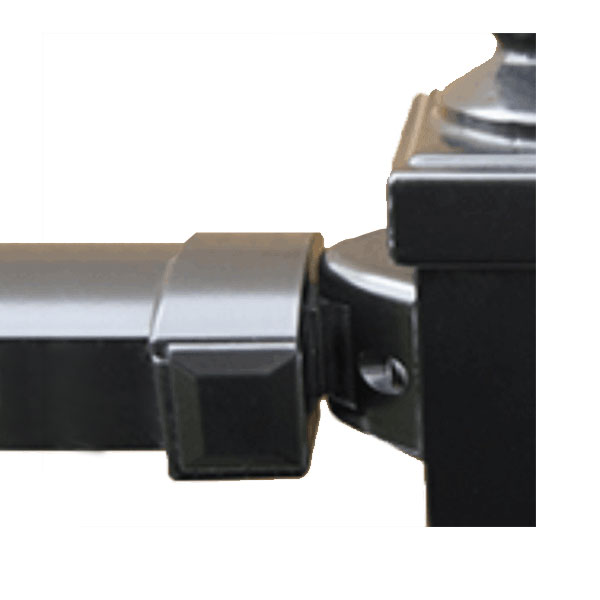

  • Angle Mount Brackets: Are used for angled level runs, with the ability to change angles from left to right and vise versa from 0 - 45 degrees.
  • Stair Mount Brackets: Used for staircases with angles of 0 - 42 degrees vertically. The Stair Mounts do not swivel.

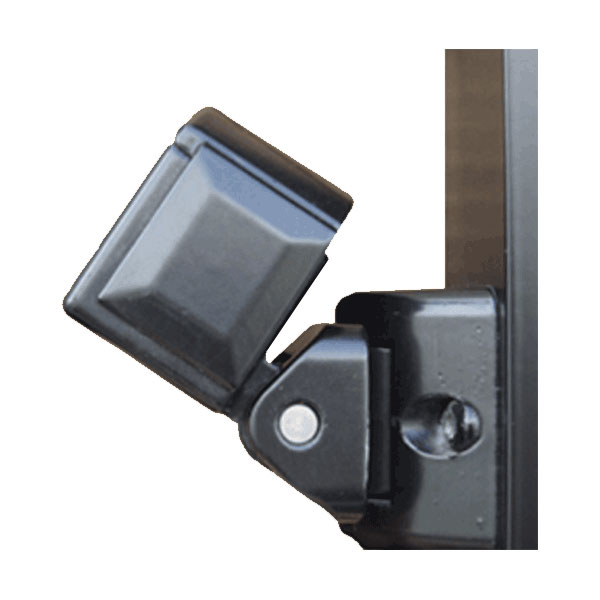

  • Stair Swivel Mounts: Are used for angled staircases that require changing angles. It swivels angles from 32 - 38 degrees vertically.

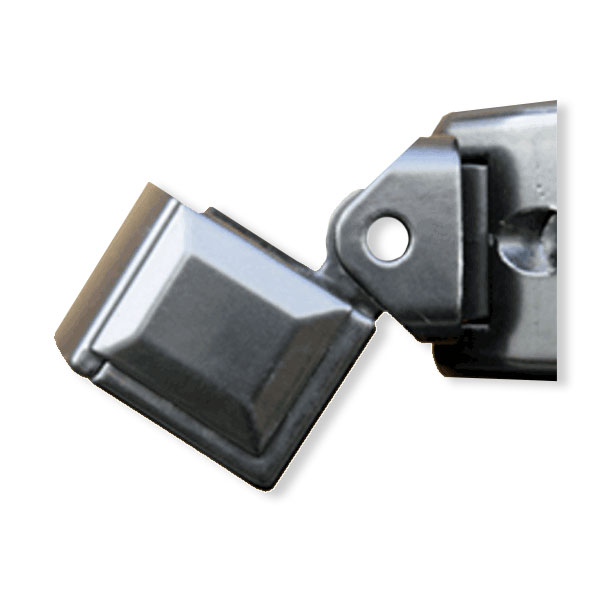

  • Double Swivel Stair Mounts: For angled staircases that require changing angles. It swivels angles from 0 - 45 degrees vertically, and 0 - 45 horizontally.
Package Quantity Westbury Riviera Railing Brackets sold in 6 packs (enough to do a single panel on both end), except Double Swivel Mount Brackets sold in packs of 3
Color Black Fine Texture, Bronze Fine Texture, White Fine Texture
Manufacturer Westbury
Manufacturer Link https://www.diggerspecialties.com/categories-list/86/Westbury-Aluminum-Railing
Installation Help https://www.diggerspecialties.com/site/wp-content/uploads/2018/05/99689_Map_Instructions_C10__C20_02-18.pdf

Westbury Aluminum Railing

The Westbury brand supplies maintenance-free aluminum deck railing systems that will fit your home & last for years. Whether it's classic designed railing or vertical cable rail, there is something for every home. Westbury offers a limited lifetime warranty on their aluminum deck railing.
