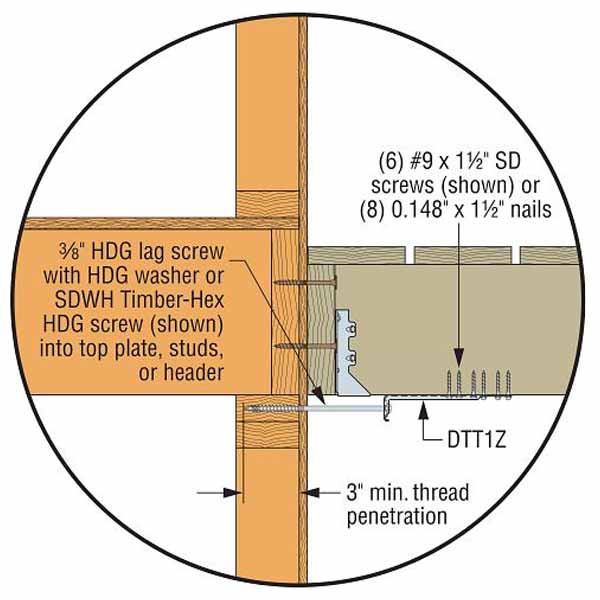

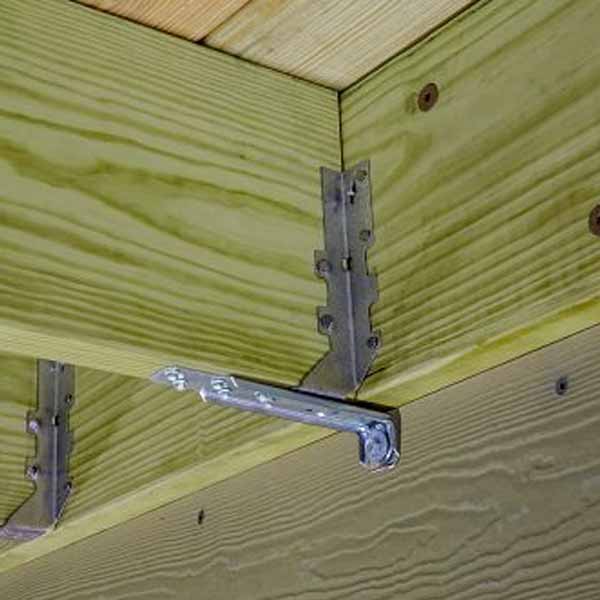

For new construction or to make an existing current deck code-compliant, the DTT1Z can be used as a tension-tie to satisfy the 2015 IRC provision for a 750 lbs. lateral load connection to the house at four locations per deck. This new code detail permits the lateral connection from the deck joists to be made to top plates, studs, or headers within the supporting structure, which eliminates the need to access to the floor joists inside the home.

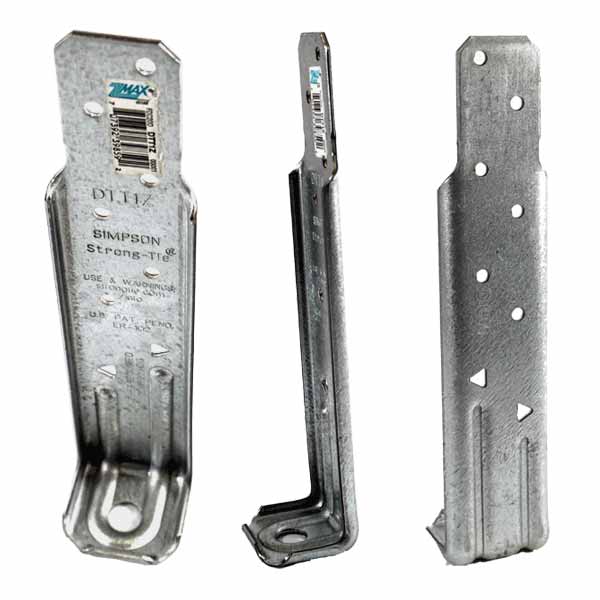

The new DTT1Z fastens to the narrow or wide face of a single 2x with Simpson Strong-Tie® Strong-Drive® SD Connector screws or nails and accepts a 3/8" machine bolt, anchor bolt, or lag screw (washer required) or can be installed with the new Strong-Drive SDWH Timber-Hex HDG screw with an integral washer. Read Simpson's DTT1Z Technical Bulletin.

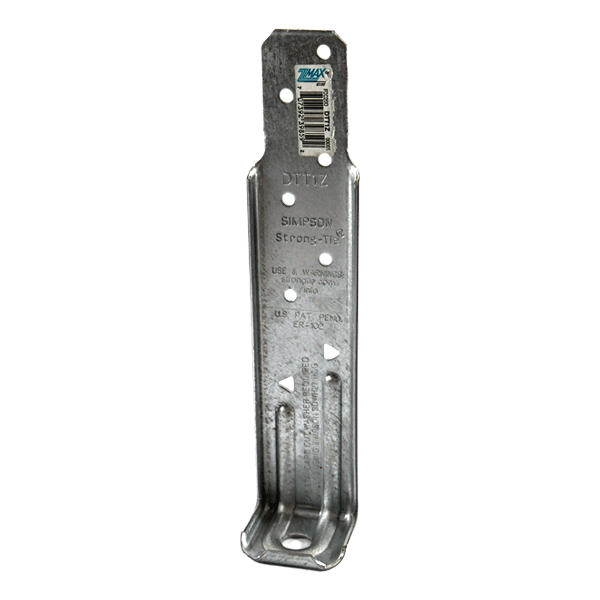

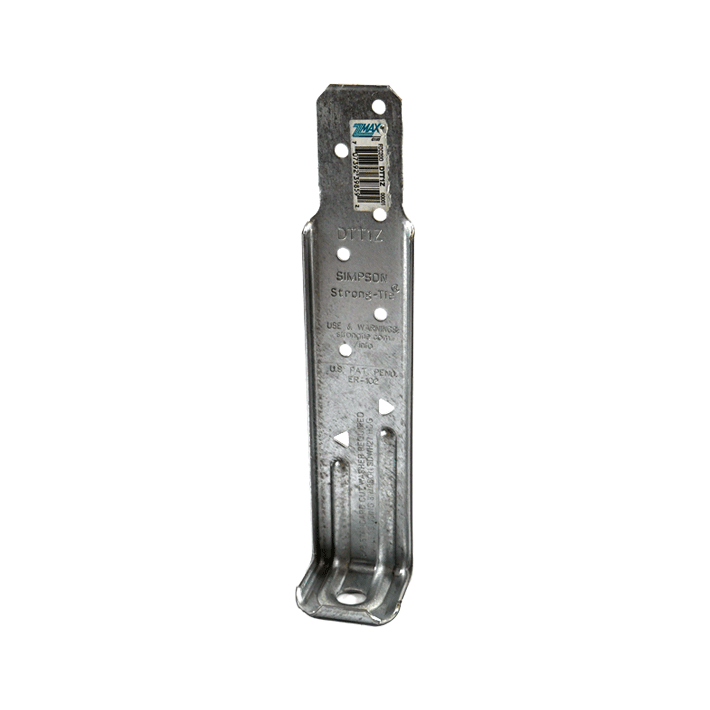

||One DTT1Z Deck Tension Tie
||Simpson Strong Tie
