EFFEX Low Voltage Transformer Kit

DekPro EFFEX Timer with Photo Eye is a photoelectric timer with a built-in photo eye for use with any transformers (sold separately). The EFFEX Timer with Photo Eye is 110 volt and can be set to on/off at dusk and dawn automatically or on at dusk with 2 -10 hour run times. It features 2 out plugs and plugs into an outlet, while the transformer plugs into this unit (the timer).

DekPro EFFEX Dimmer is a remote dimmer designed for use with EFFEX Lighting components and transformers (sold separately) to control on/off and dimming functions. The EFFEX Dimmer is 12 volt, waterproof and works with most DC transformers up to 60 watts. It draws 2.5 watts and has a remote range of approximately 70 feet.

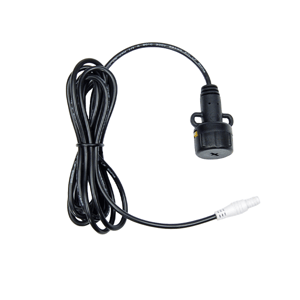

DekPro EFFEX 9’ Quick Connect Cable is a 9-foot long cable with watertight Quick Connect fittings on each end. The cables connect into DekPro™ EFFEX lighting components and are for use when running wire through the top rail of a DekPro Prestige aluminum railing system.

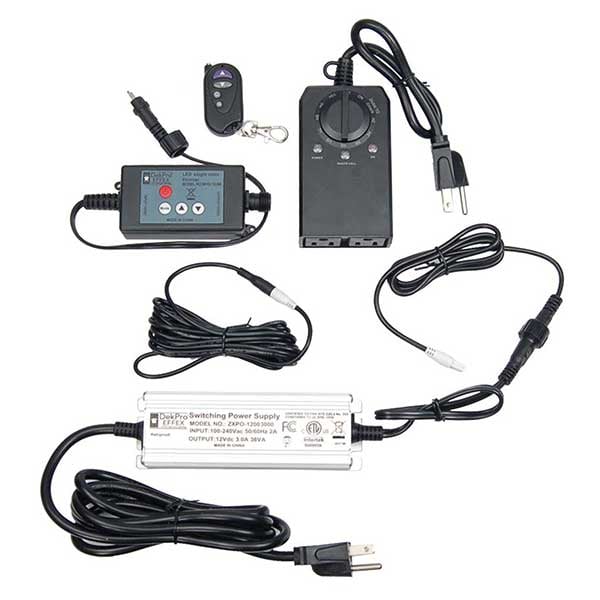

• Includes everything needed to create an EFFEX lighting system
• (1) Outdoor DC output transformer w/ Quick Connect leads, (1) photoelectric timer w/ built in photo eye, (1) remote dimmer and (1) 9’ Quick Connect Cable
• Transformer is available in 36 watt, 60 watt, or 100 watt
• Determine correct transformer size by adding up wattage of all fixtures
• Total wattage should not exceed 80% of transformer capacity
• 36 watt transformer max power: 28.8 watts
• 60 watt transformer max power: 48 watts
• 100 watt transformer max power: 80 watts
