JUS Double Shear Joist Hangers from MiTek

With MiTek JUS Joist Hangers, you can create a solid and reliable deck or patio structure. These face mount joist hangers are specially designed for the end of joists or beams, providing a secure and stable connection. Made from 18 gauge steel, these hangers offer exceptional strength and durability.

One of the standout features of the MiTek JUS Joist Hangers is the double shear nailing. This innovative design allows for nails to be inserted from both sides of the hanger, effectively doubling the shear strength at the connection points. The result is a stronger and more resilient deck structure that can withstand the test of time.

The dimple feature on the joist hangers is another notable aspect. This feature allows for angled nailing, ranging from 30° to 45°, ensuring a secure and tight attachment. This allows for easier installation and adds an extra layer of stability to your deck or patio.

To protect against corrosion and ensure maximum longevity, the MiTek JUS Joist Hangers come with a galvanized G-185 triple zinc coating. This coating provides excellent resistance to rust and corrosion, even in challenging outdoor environments. Additionally, these hangers are ACQ approved, making them suitable for use with the popular pressure-treated lumber that may contain chemicals that accelerate corrosion.

MiTek is committed to producing high-quality products, and the JUS Joist Hangers are no exception. With their sturdy 18 gauge steel construction and superior galvanized coating, these joist hangers provide exceptional performance and durability. They are also backed by the ESR-3445 Code Report, ensuring compliance with industry standards.

Proudly made in the USA, the MiTek JUS Joist Hangers are comparable to the renowned SST LUS hangers, offering the same level of quality and reliability. When it comes to deck and patio construction, trust MiTek JUS Joist Hangers for a strong and resilient foundation.

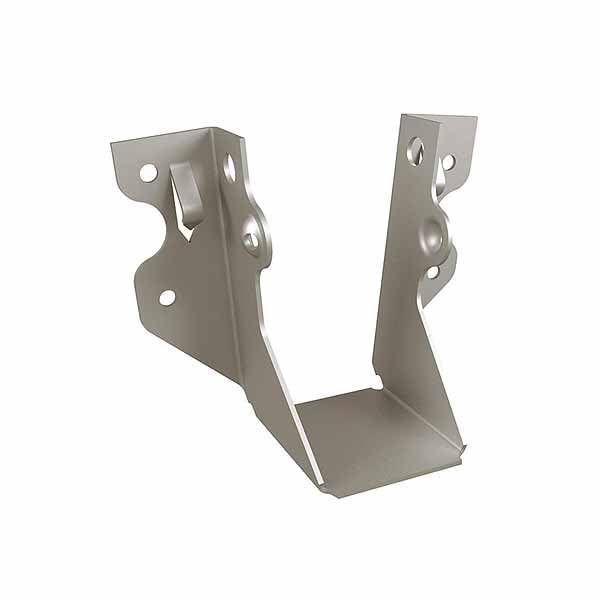

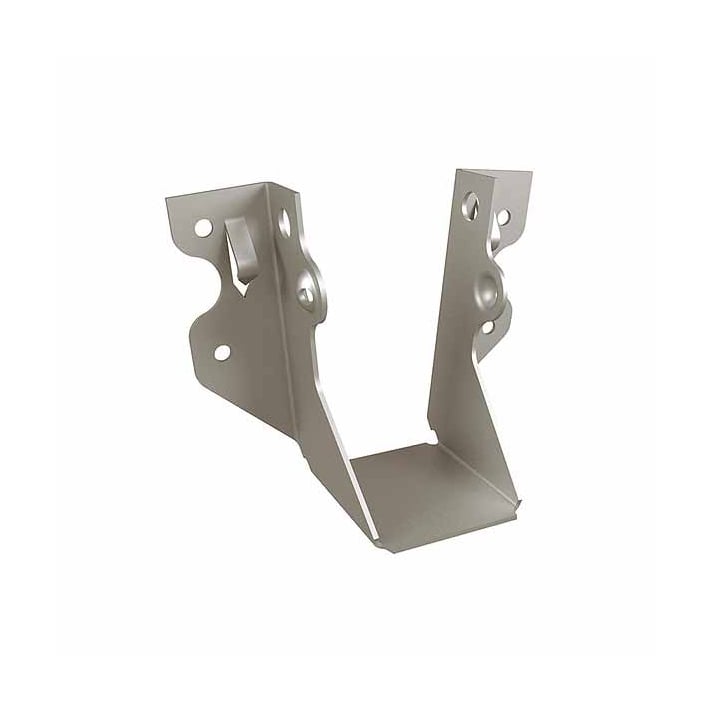

JUS24-TZ

• Use For 2" x 4" Joists
• Attach To Joist With (2) 10D x 1-1/2" HDG Nails
• Attach To Header With (4) 10D HDG Nails
• 1-9/16" Wide x 3-1/8" High x 1-3/4" Deep
• Reference# LUS24Z

JUS26-TZ

• Use For 2" x 6"-8" Joists
• Attach To Joist With (4) 10D x 1-1/2" HDG Nails
• Attach To Header With (4) 10D HDG Nails
• 1-9/16" Wide x 4-13/16" High x 1-3/4" Deep
• Reference# LUS26Z

JUS28-TZ

• Use For 2" x 8"-10" Joists
• Attach To Joist With (4) 10D x 1-1/2" HDG Nails
• Attach To Header With (6) 10D HDG Nails
• 1-9/16" Wide x 6-5/8" High x 1-3/4" Deep
• Reference# LUS28Z

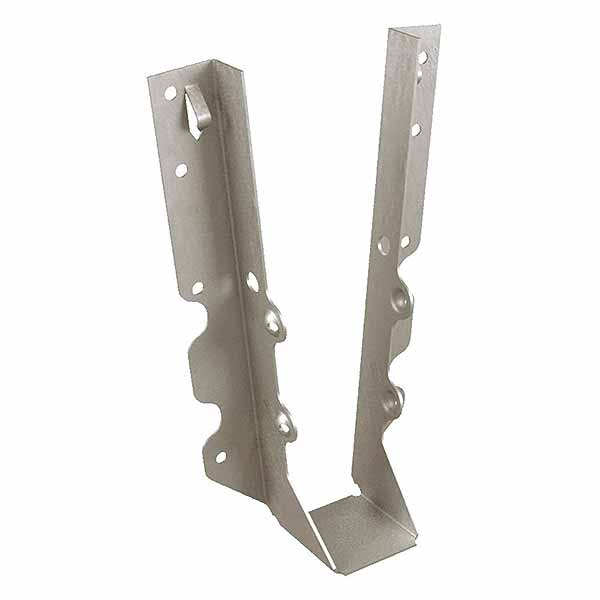

JUS210-TZ

• Use For 2" x 10"-12" Joists
• Attach To Joist With (4) 10D x 1-1/2" HDG Nails
• Attach To Header With (8) 10D HDG Nails
• 1-9/16" Wide x 7-3/4" High x 1-3/4" Deep
• Reference# LUS210Z

JUS26-2TZ

• Use For Double 2" x 6"-8" Joists
• Attach To Joist With (4) 16D x 1-1/2" HDG Nails
• Attach To Header With (4) 16D HDG Nails
• 3-1/8" Wide x 5-1/4" High x 2" Deep
• Reference# LUS26-2Z

JUS210-2TZ

• Use For Double 2" x 10"-14" Joists
• Attach To Joist With (6) 16D x 1-1/2" HDG Nails
• Attach To Header With (8) 16D HDG Nails
• 3-1/8" Wide x 9-1/8" High x 2" Deep
• Reference# LUS210-2Z
