JLIF Inverted Flange Joist Hangers from MiTek

MiTek JLIF Concealed Flange Joist Hangers are the perfect solution for securely attaching the end of joists or beams. These face mount hangers offer a clean look with their inverted flange design, ensuring that your deck frame has a neat and professional appearance.

Made from 18 gauge steel, JLIF Joist Hangers are incredibly sturdy and built to last. The galvanized G-185 triple zinc coating provides superior corrosion protection, making them an excellent choice for outdoor applications. To ensure maximum durability use HDG (hot dipped galvanized) fasteners attaching these hangers.

The MiTek JLIF Joist Hangers are for use with ACQ-treated lumber, and code approved with their ESR-4517 Code Report. Additionally, these joist hangers are proudly Made in the USA, ensuring top-notch quality and supporting local manufacturing.

If you are looking for high-quality, durable, and code-compliant joist hangers, MiTek JLIF Joist Hangers are an excellent choice. Comparable to the SST LUCZ hangers, these face mount hangers provide the strength and aesthetic appeal you need for your deck framing project. Trust in their construction, corrosion protection, and reliable performance to create a sturdy and visually appealing outdoor space.

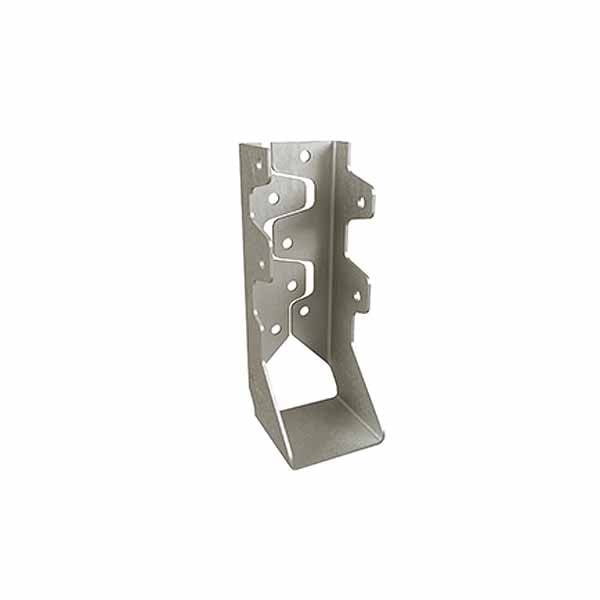

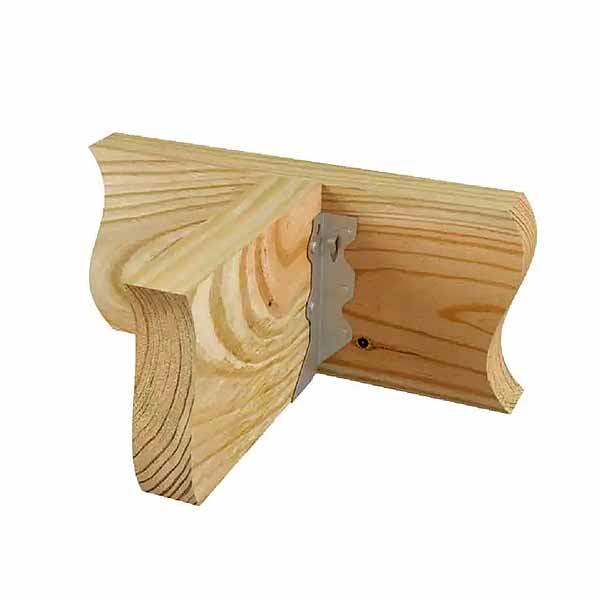

JL26IF-TZ

• Use For 2" x 6"-8" Joists
• Attach To Joist With (4) 10D x 1-1/2" HDG Nails
• Attach To Header With (6) 10D or 16D HDG Nails
• 1-9/16" Wide x 4-1/2" High x 1-1/2" Deep
• Reference# LUC26Z

JL28IF-TZ

• Use For 2" x 8"-10" Joists
• Attach To Joist With (4) 10D x 1-1/2" HDG Nails
• Attach To Header With (8) 10D or 16D HDG Nails
• 1-9/16" Wide x 6-1/8" High x 1-1/2" Deep
• Reference# LUC28Z

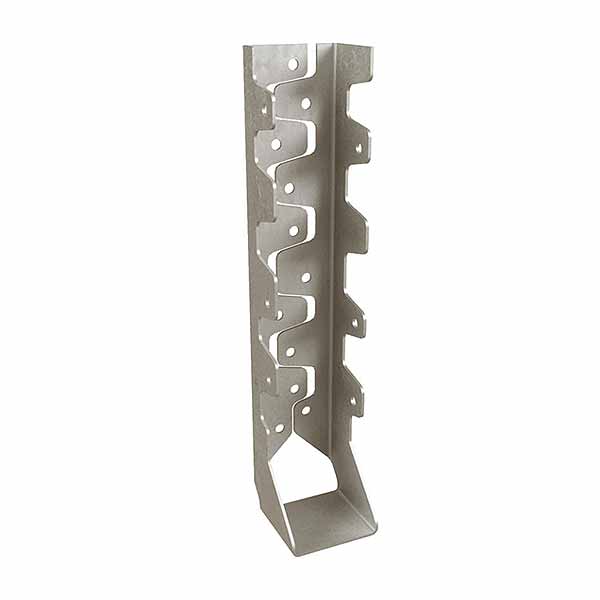

JL210IF-TZ

• Use For 2 " x 10"-12" Joists
• Attach To Joist With (6) 10D x 1-1/2" HDG Nails
• Attach To Header With (11) 10D or 16D HDG Nails
• 1-9/16" Wide x 8-1/4" High x 1-1/2" Deep
• Reference# LUC210Z
