Simpson Strong Tie Titen HD Heavy-Duty Screw Anchor

More Views

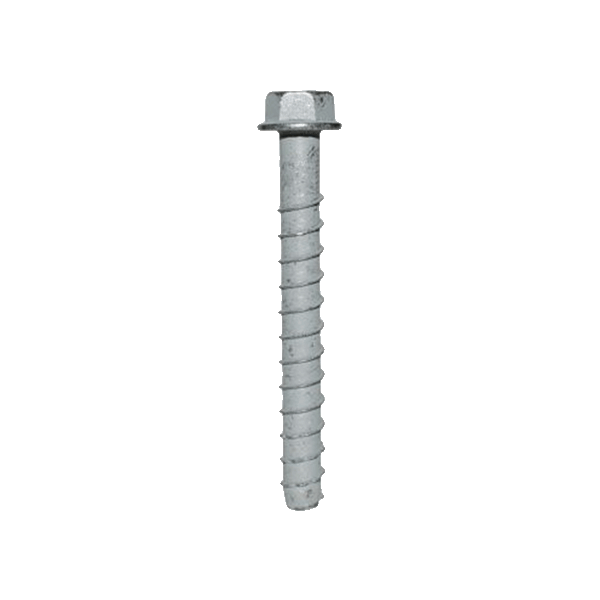

Simpson Strong Tie Titen HD Heavy-Duty Screw Anchor

Titen HD Heavy-Duty Anchors

Simpson Titen HD Heavy-Duty Screw Anchors are for use in cracked & uncracked concrete, as well as uncracked masonry. The Titen HD Anchors offer low installation torque & outstanding performance. IBC & IRC approved, Titen HD Screws feature an unique thread design that undercuts to efficiently transfer the load to the base material. The hex washer head allows faster installation with a socket instead of a torx bit. Available in 1/2" or 5/8" diameters, 5" or 6" lengths.

View more product details
$53.99

* Required Fields

$53.99

Questions? Visit our resource center or ask an expert

Free Shipping Available

On any combination of select items over $199

Excluding Alaska and Hawaii. Conditions Apply

  • Minimum Order Tier: $199
  • Note: Free shipping only applies to combined product totals of the same Minimum Order Tier. Learn More

Priority Shipping Available

Ships to Alaska, Hawaii, and many US Territories.

Titen HD Heavy Duty Screw Anchors are made from Carbon Steel & feature:

  • 1/2"x5" Titen HD Anchors available in Zinc Plated Carbon Steel or Mechanically Galvanized Carbon Steel
  • 1/2"x6", 5/8"x5", 5/8"x6" Titen HD Anchors available Mechanically Galvanized Carbon Steel
  • 1/2" have 3/4" Hex Heads
  • 5/8" have 15/16" Hex Heads
  • Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713
  • Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
  • Qualified for static and seismic loading conditions

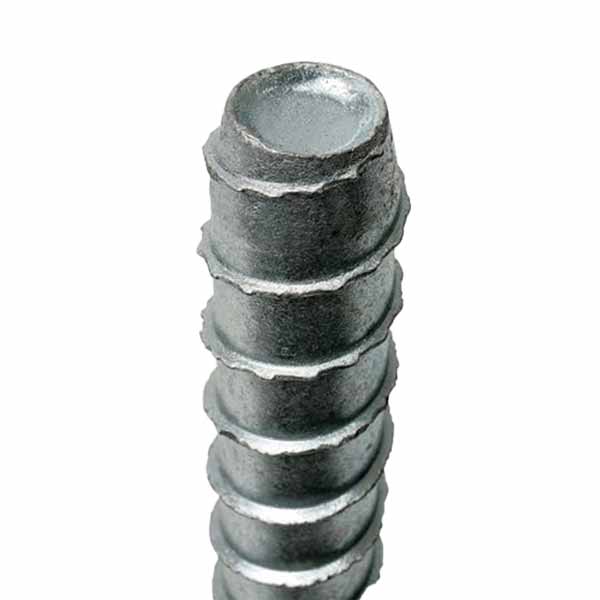

  • Thread design undercuts to efficiently transfer the load to the base material
  • Standard fractional sizes
  • Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors

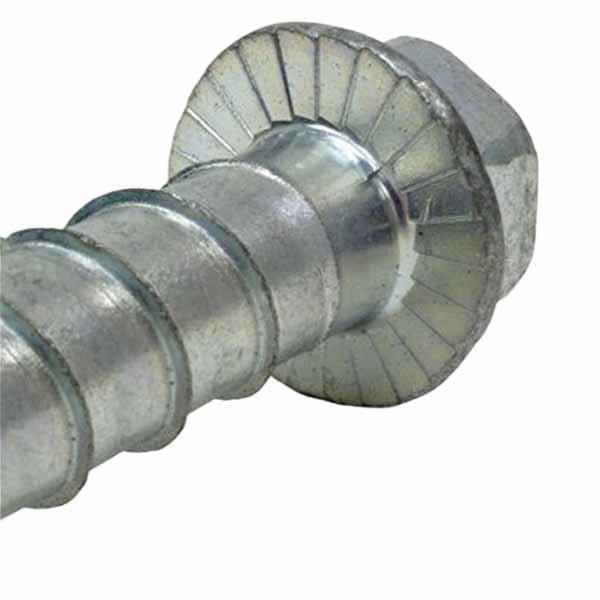

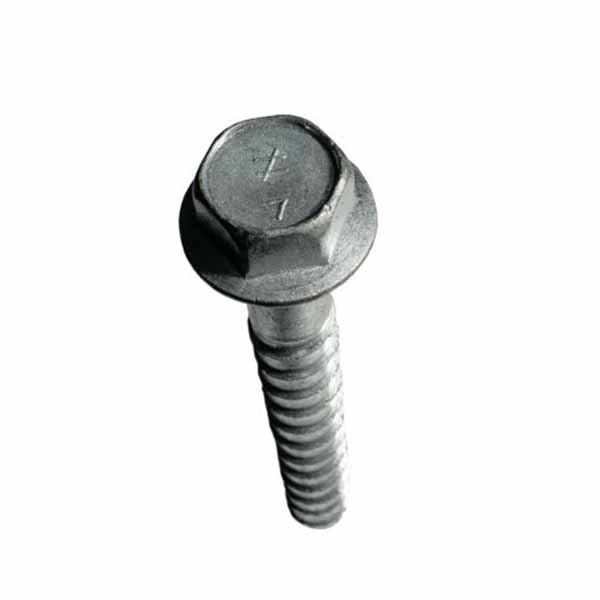

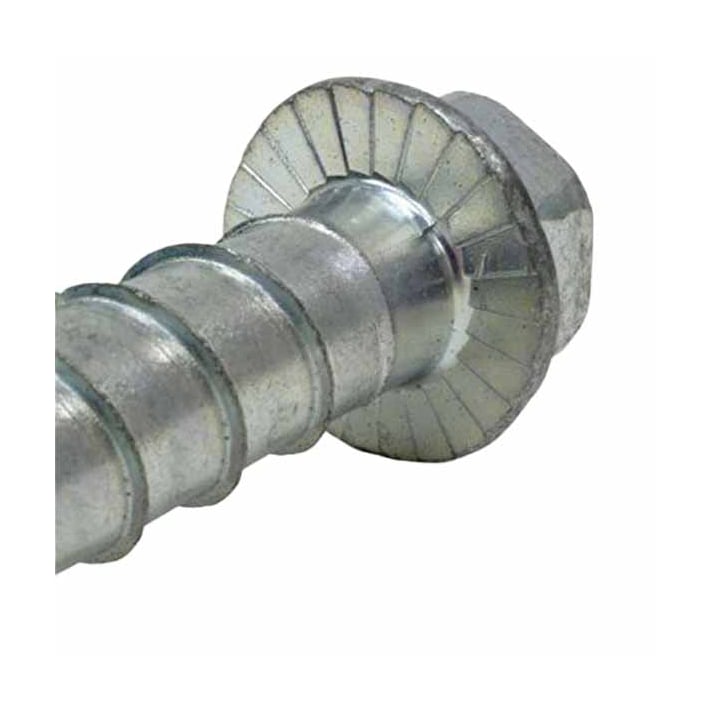

  • Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
  • Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
  • Reuse of the anchor to achieve listed load values is not recommended

Manufacturer Simpson Strong Tie
Package Quantity 10 or 20 per box depending on selection
Dimensions 1/2" x 5", 1/2"x6", 5/8"x5", 5/8"x6"
Manufacturer Link https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thd_anchor/p/titen-hd

Simpson Strong Tie Hardware

Just like your home, it's important to make sure your deck is built right. Most experts agree that the average life expectancy of a wood deck is 10 to 15 years. It is estimated that there are millions of decks in the U.S. that are beyond their useful life and may be unsafe. In fact, the number of deck collapses has increased in recent years. Since 1999, there have been more than 850 reported injuries and 20 deaths as a result of deck failures. Simpson Strong Tie supplies all the correct deck framing hardware, like joist hangers, needed to create safe, strong, and code compliant deck & porch framing.

If you're building a deck or have an existing deck, you should know how to evaluate its construction to make sure it's structurally sound and safe. Using the proper structural connectors and fasteners (like nails and screws) as well as regular maintenance are the keys to a safe, strong deck. At The Deck Store we invite you to learn more about how to make your deck safe. We are the deck experts, come in or contact us with your deck framing connection questions.
