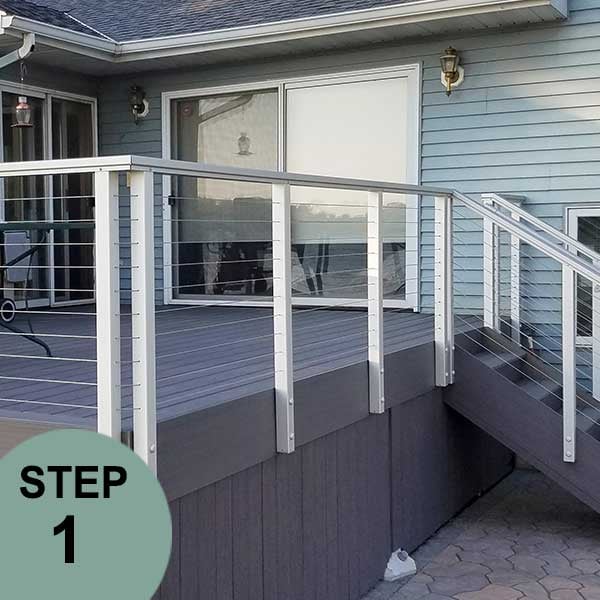

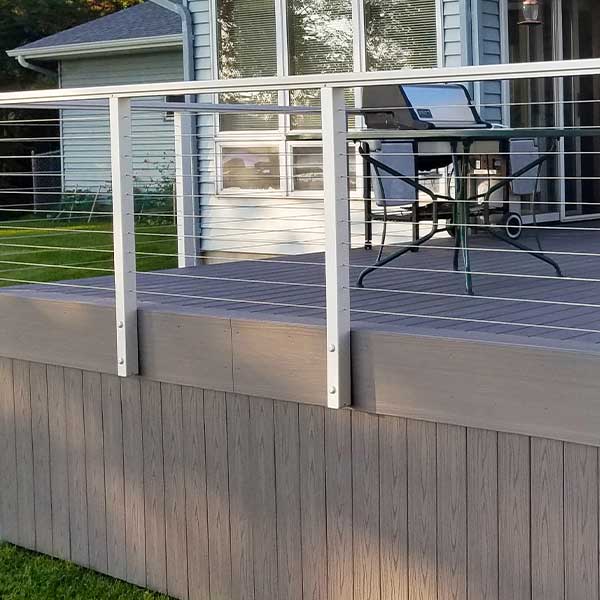

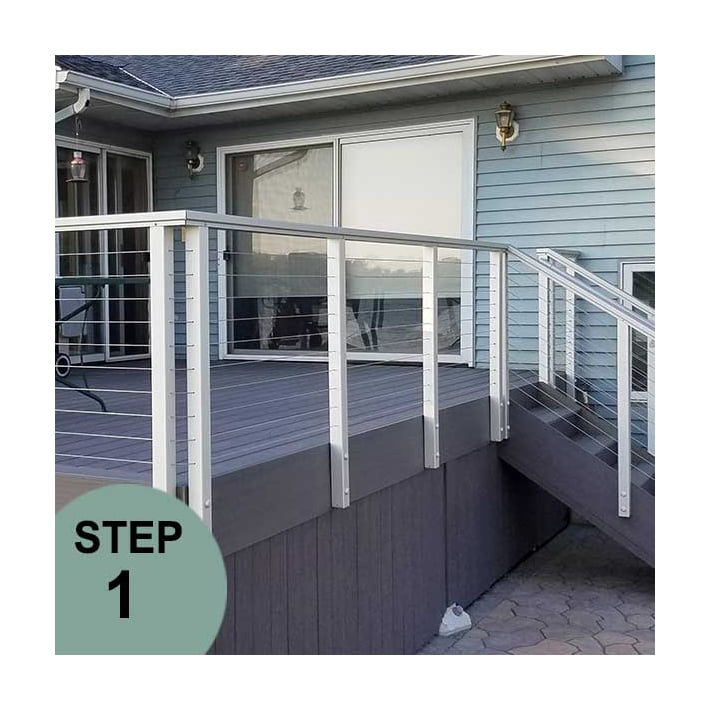

The fascia mounted posts by RailFX allow for a unique placement of your cable rail posts on the outside of the fascia. Installation is made easy with the fascia post flush mount kit or the fascia mount brackets. Deciding which to go with comes down to preference and any other individual project limitations or needs. Always check your local building codes.

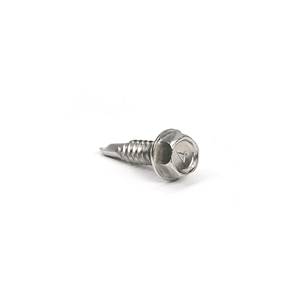

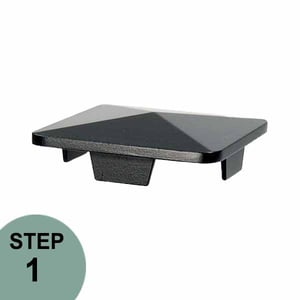

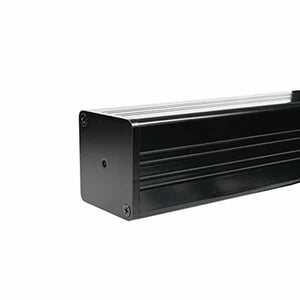

Fascia Mounting Brackets | Post Cap for Fascia Mounted Posts | Lag Screws | Bottom Plate for Fascia Mounted Posts - sold separately
RailFX 42" Cable Rail is approved for commercial use in the US. Always check local codes and ordinances.
Undrilled Posts: 2-3/8" x 52" square post for 36" and/or 42" rail heights. Posts must be cut to size on site. Base plate sold separately, must be attached to post. Base plate holes for fasteners are 3/8". Engineered to meet code with posts at 60" on center spacing.
Pre-Drilled End Posts: 2-3/8" square fascia mount post for cable system. Pre-drilled post is drilled at 3-3/16" on center spacing. 10 holes for 36" rail, or 12 holes for 42" rail. Engineered to meet code with posts at 60" on center spacing. Fascia brackets sold separately.

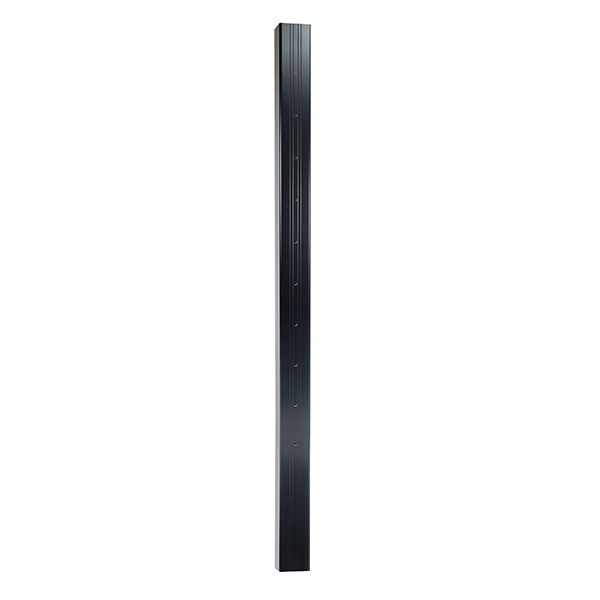

Pre-Drilled Intermediate Posts: 2-3/8" square fascia mount post for cable system. Pre-drilled post is drilled at 3-3/16" on center spacing. 10 holes for 36" rail, or 12 holes for 42" rail. Engineered to meet code with posts at 60" on center spacing. Fascia brackets sold separately.

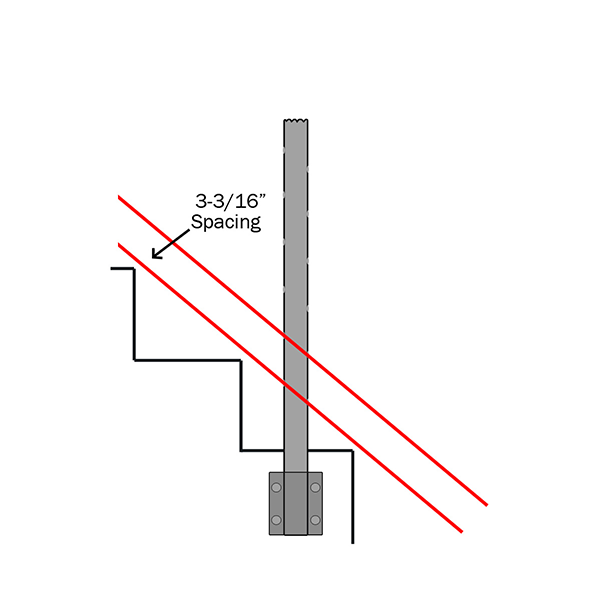

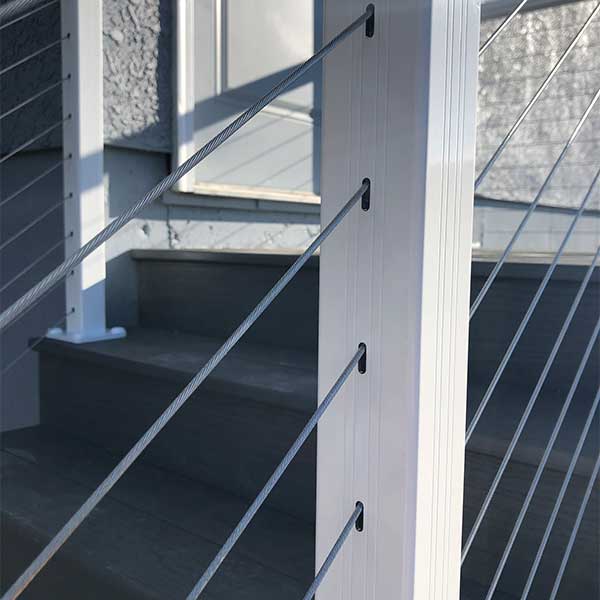

Pre-Drilled Posts: 2-3/8” Square fascia mount post for use as an intermediate stair post. Stair post holes are slotted and drilled at 3-3/16” on center and offset to allow cables to pass through at the angle of the stair. Fascia brackets sold separately.
Package Quantity | (1) fascia mounted post |
---|---|
Color | Black Aluminum, Bronze Aluminum, Silver, White Aluminum |
Manufacturer | RailFX |
Manufacturer Link | https://www.railfx.net/ |
Installation Help | https://www.railfx.net/resources/installation/ |
Dimensions | 2-3/8" Square | 4 3/8" Holes | 46" to Make a 36" Tall Rail and 52" to Make a 42" Tall Rail |
