Blu-Mount Angle Wizard Post Mount

More Views

LMT Blu-Mount Angle Wizard Post Mount

100 1 100 0

Blu-Mount Angle Wizard Post Mount

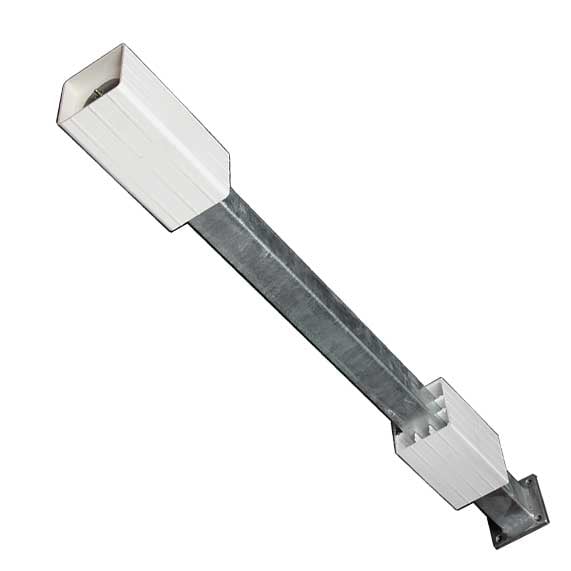

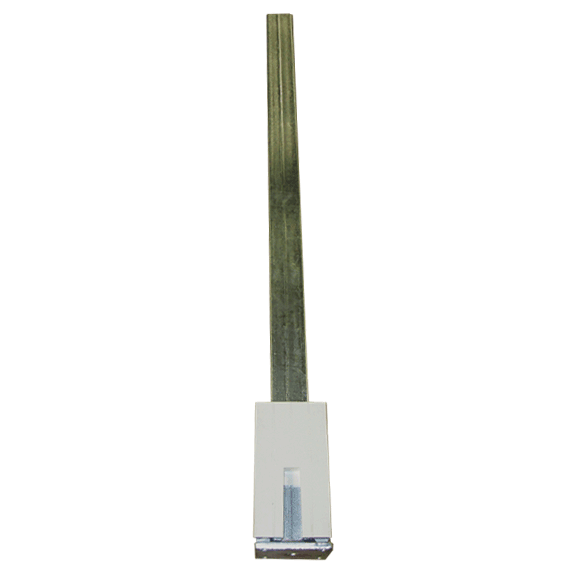

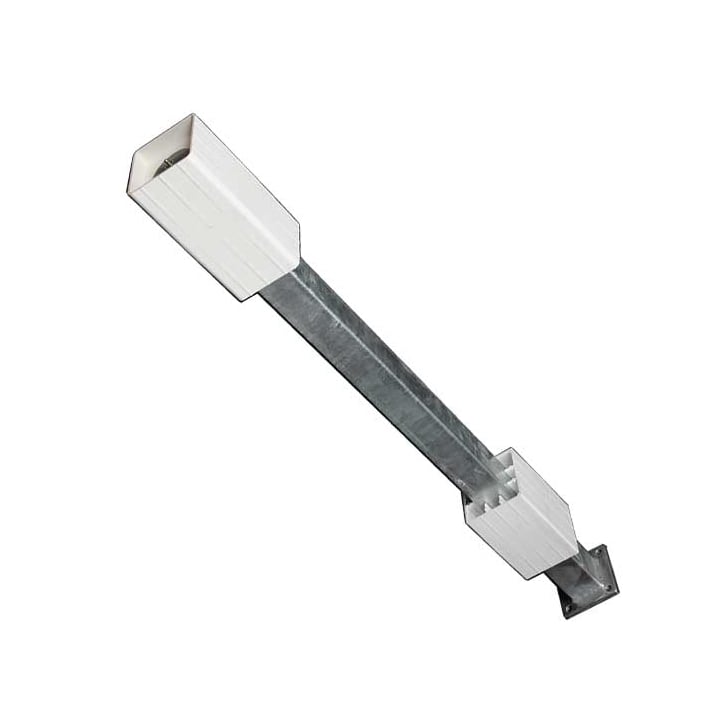

The Blu-Mount Angle Wizard Heavy Duty Post Mount from LMT is the perfect post surface mounting system designed for installing 4” or 5” composite post sleeves/covers to concrete, wood, or composite deck surfaces where there is an awkward angle, or when you just don't want to mess with shims. There is a centering nut in the top guide that is used to adjust the angle of the post. Hardware available for either attaching to a wood/composite deck or a concrete surface.

View more product details
$45.99

* Required Fields

$45.99

Questions? Visit our resource center or ask an expert

Free Ground Shipping Available

On any combination of select items over $299

Excluding Alaska and Hawaii. Conditions Apply

  • Minimum Order Tier: $299
  • Note: Free shipping only applies to combined product totals of the same Minimum Order Tier. Learn More

Ground Shipping Only

This product requires ground shipping.

The Blu-Mount Angle Wizard Post Mount is made from High Quality Steel with a Dachromate coating for superior rust prevention in even the most severe environments. The Guides are PVC for 4" or 5" composite post sleeves. Wood or Concrete mounting options available.

Installation of the LMT Blu-Mount Angle Wizard Post Mount is fairly straight-forward. Install the Post Mount to deck surface with your own fasteners. Slide the bottom mount to the level of your bottom rail, secure with the provided screw. Slide on your post sleeve, level and plumb, and hand tighten the center nut. Re-check level and plumb and tighten center nut with a 7/16" socket. Put on the cap - Done!

The Top Guide on these post mounts can be flipped over to add 6" to overall post height. Useful for stair railing. You do have to use a socket extension to tighten the center nut if you do this.

Download Installation Instructions

Dimensions 36" or 42" high with 4" or 5" PVC guides
Manufacturer Non-Branded

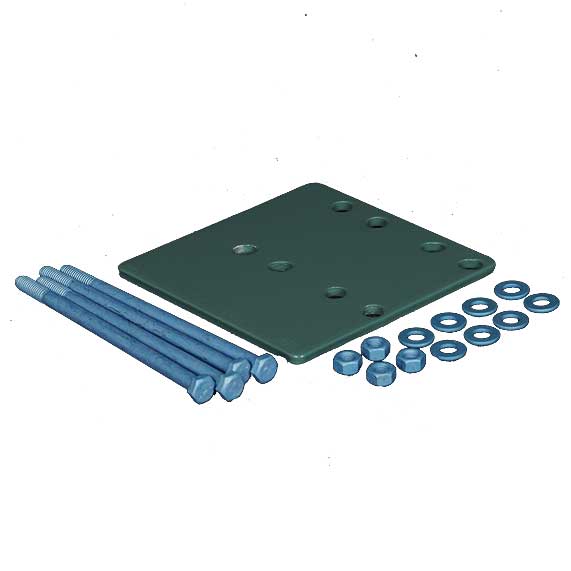

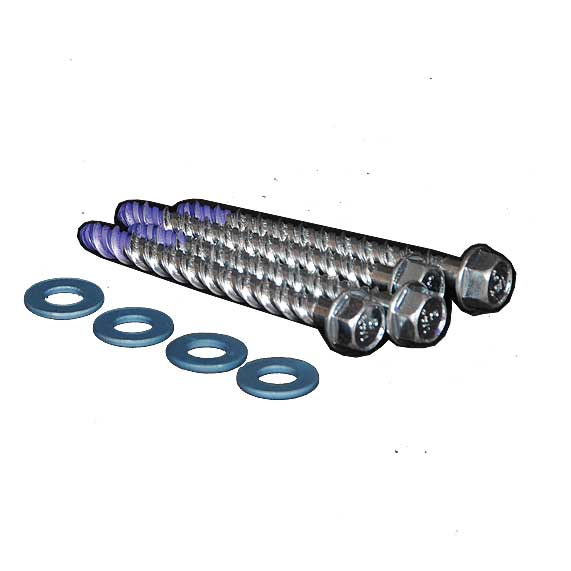

Installation Help http://www.thedeckstoreonline.com/pdf/Angle-Wizard-Installation-Instructions.pdf

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

  1. Very Heavy Duty post! review by Christopher on 3/29/2018
    Overall Product Rating

    The post is extremely well made, the base mounting plate is 5/8" thick steel, the adjustable top guide seems strong. A concern I had was that the bolt may not hold the top guide well but the guide has a textured area that sits on an equally textured "pad" on the top of the steel post, locking it in place when tightened, so i do not think this will be an issue. While i have not yet installed them they seem like they will work very well. I will certainly update this review if I find any problems.
