Post Base Plate by RailFX
The RailFX cable railing post base plates come in 4 variations to accommodate for all possible post mounting applications. Variants include: Standard, Angle/Knee Wall, Narrow, & Narrow Angle/Knee Wall. Installation is made easy with T40 torx bit.
Detailed Information
5"x5" Standard Base Plate: At 3/8" thickness, these aluminum base plates are used with undrilled posts for surface mount post applications. Base plate holes for fasteners are 3/8". (Includes 4x bolt cap covers and 4x 5/16"x2" stainless steel screws. Use T40 torx bit for installation.

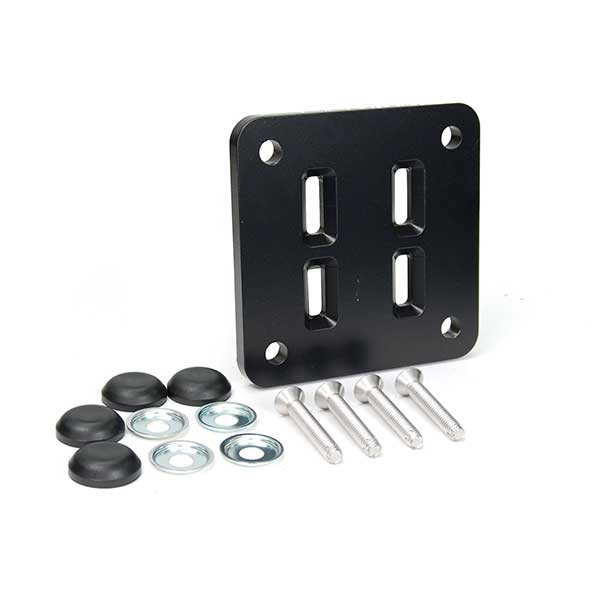

5"x5" Angle/Knee Wall Base Plate: At 3/8" these adjustable aluminum base plates are used for 2x6 knee wall applications (32° - 38°). Base plate holes for fasteners are 3/8". Includes 4x bolt cap covers and 4x 5/16"x2" stainless steel screws. Use T40 torx bit for install. Requires grinding of bolt head for flush bottom.
3"x5" Narrow Base Plate: At 3/8" thickness these slotted, adjustable, aluminum base plates are used for 2x4 knee wall applications (32° - 38°). Base plate holes for fasteners are 3/8". Includes 4x bolt cap covers and 4x 5/16"x2" stainless steel screws. Use T40 torx bit for installation.

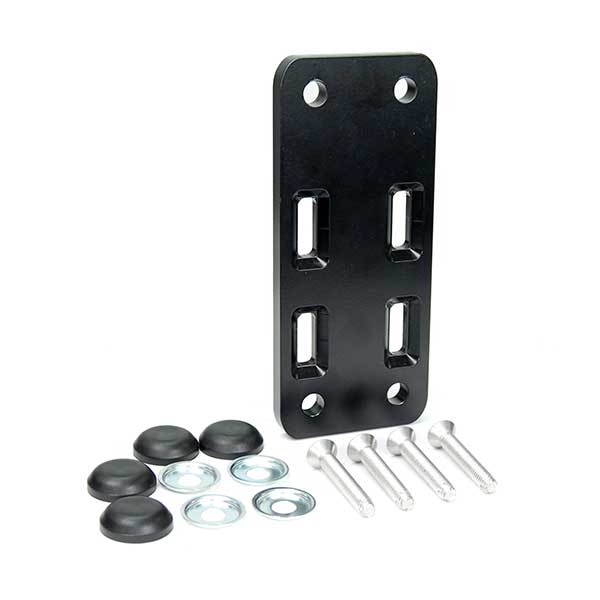

3"x7" Narrow Angle/Knee Wall Base Plate: At 3/8" thickness these slotted, adjustable, aluminum base plates are used for 2x4 knee wall applications (32° - 38°). Base plate holes for fasteners are 3/8". Includes 4x bolt cap covers and 4x 5/16"x2" stainless steel screws. Use T40 torx bit for install. Requires grinding of bolt head for flush bottom.
| Package Quantity | (1) Post base | (4) Bolt cap covers | (4) 5/16x2" Stainless Steel Screws |
|---|---|
| Color | Black Aluminum, Bronze Aluminum, Silver, White Aluminum |
| Manufacturer | RailFX |
| Manufacturer Link | https://www.railfx.net/ |
| Installation Help | https://www.railfx.net/resources/installation/ |
| Dimensions | 5x5, 3x5, or 3x7 all at 3/8" thickness |
