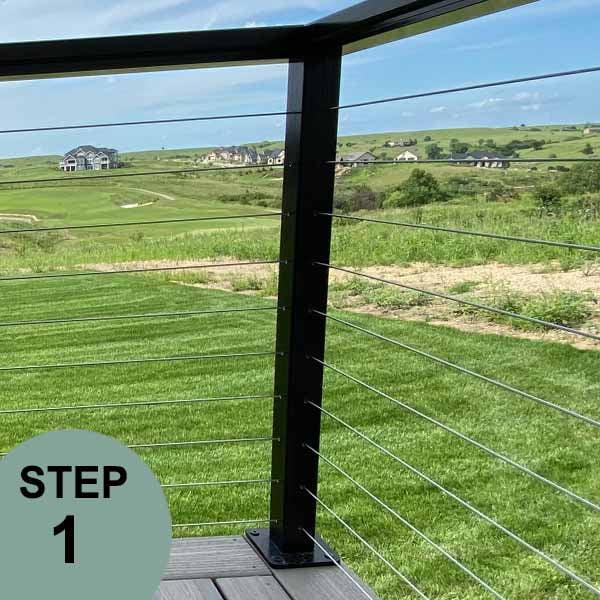

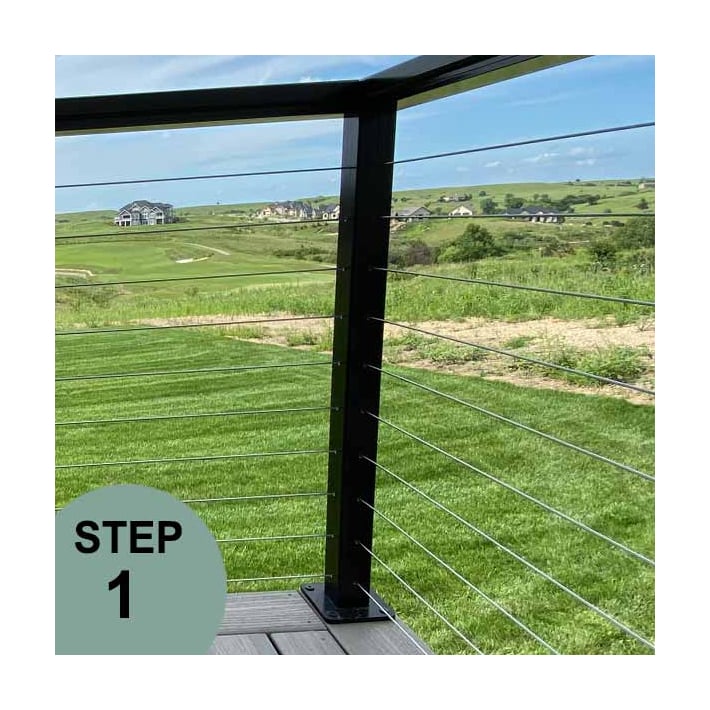

The surface mount corner posts by RailFX allow for a continuous run of cable around 90° corners and creates a more unified look. Using the corner post will eliminate the need for purchasing an additional post and having to use double posts at the corners. Simply mount the corner posts to your surface using the 5" RailFX Lag Screws (bolt cap covers included). Post come pre-drilled for your convenience at 3-3/16"OC.
RailFX 42" Cable Rail is approved for commercial use in the US. Always check local codes and ordinances.
Allows for continuous cable run around deck corners
Eliminates need for double posts at corner

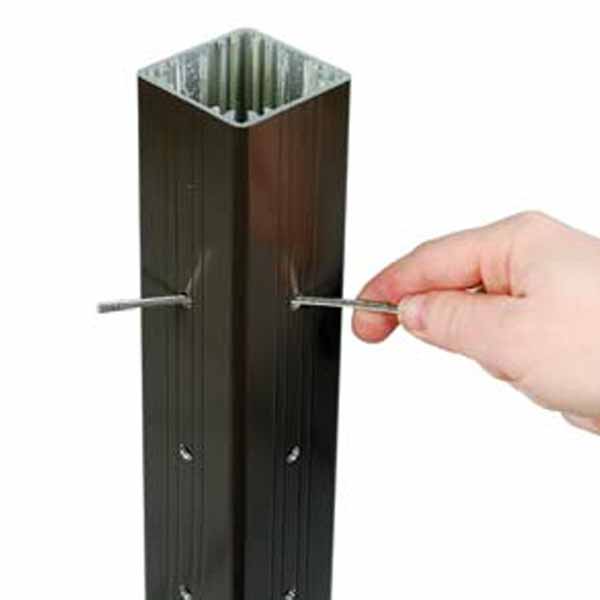

Pre-Drilled 3-3/16”OC for Cable Installation

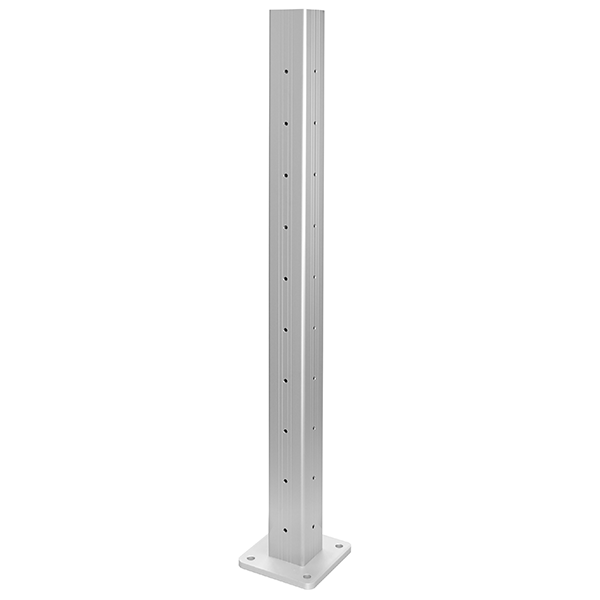

2-3/8" square surface mount corner post with 5" base plate
Plate holes are pre-drilled to accept a 3/8" Lag
10 - Pre-Drilled cable holes at 3-3/16" for 36" rail
12 - Pre-Drilled cable holes at 3-3/16" for 42" rail
Engineered to code when installed up to 50" apart
RailFX 42" Cable Rail is approved for commercial use in the US
Available in 4 Colors: Black, Bronze, White, and Silver
(1) Surface Mount Corner Post for Cable Rail, (4) Bolt cap covers
Black Aluminum, Bronze Aluminum, Silver, White Aluminum
